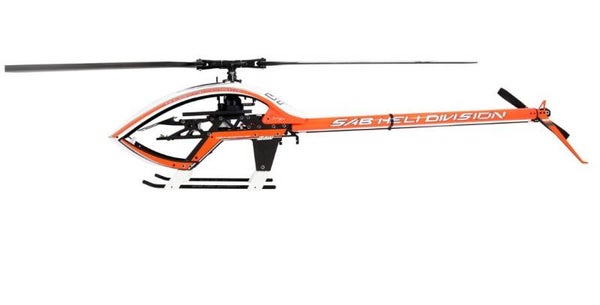

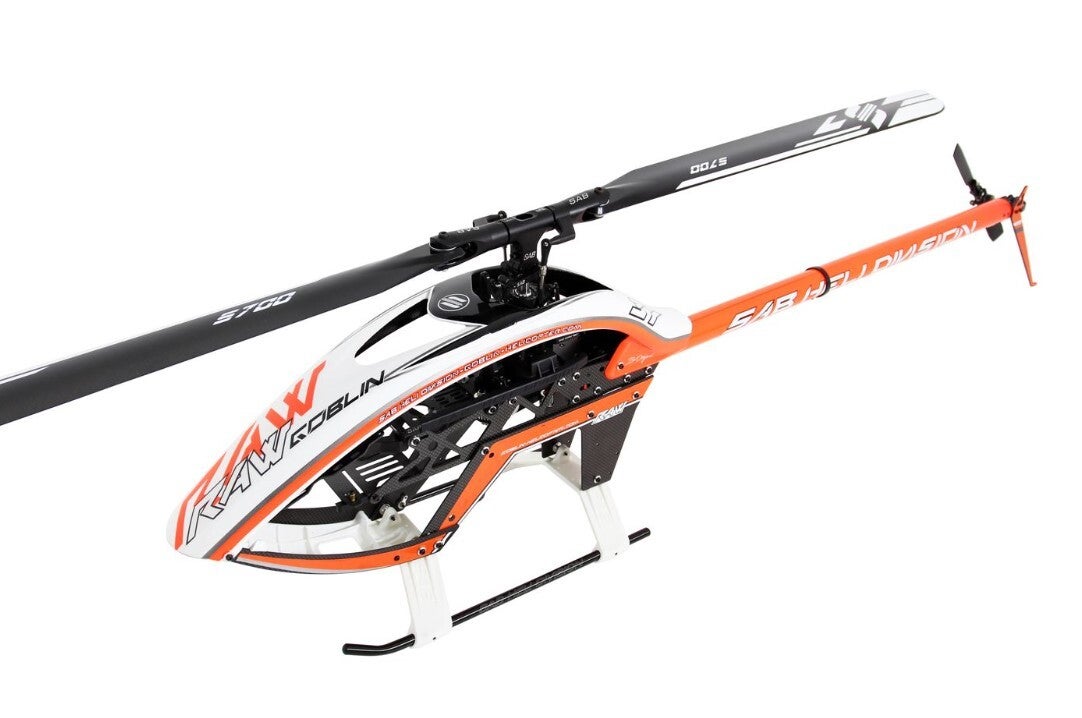

SAB GOBLIN RAW 700 WHITE/ORANGE

SAB GOBLIN RAW 700 WHITE/ORANGE

Technical Specifications Overview

• Airframe Weight: 2620 grams (including blades, excluding battery and electronics)
• Main Blade Length: 650 mm to 720 mm
• Tail Blade Length: 105 mm to 115 mm
• Main Rotor Diameter: 1548 mm (with 690 mm blades included)
• Tail Rotor Diameter: 284 mm (with 105 mm tail blades included)
• Cyclic Servos: Standard size 40 mm
• Tail Servo: Standard size 40 mm
• Main Rotor Ratio: 11.8 to 8.4 (21T gear included: 10.1:1)
• Tail Rotor Ratio: 5.0-4.8:1 (26T gear included: 4.9:1)
• Typical Motor: 4525 series
• Typical Speed Controller: 12S, 160-200 A
• Battery Size: 12S 4500-5500 mAh
