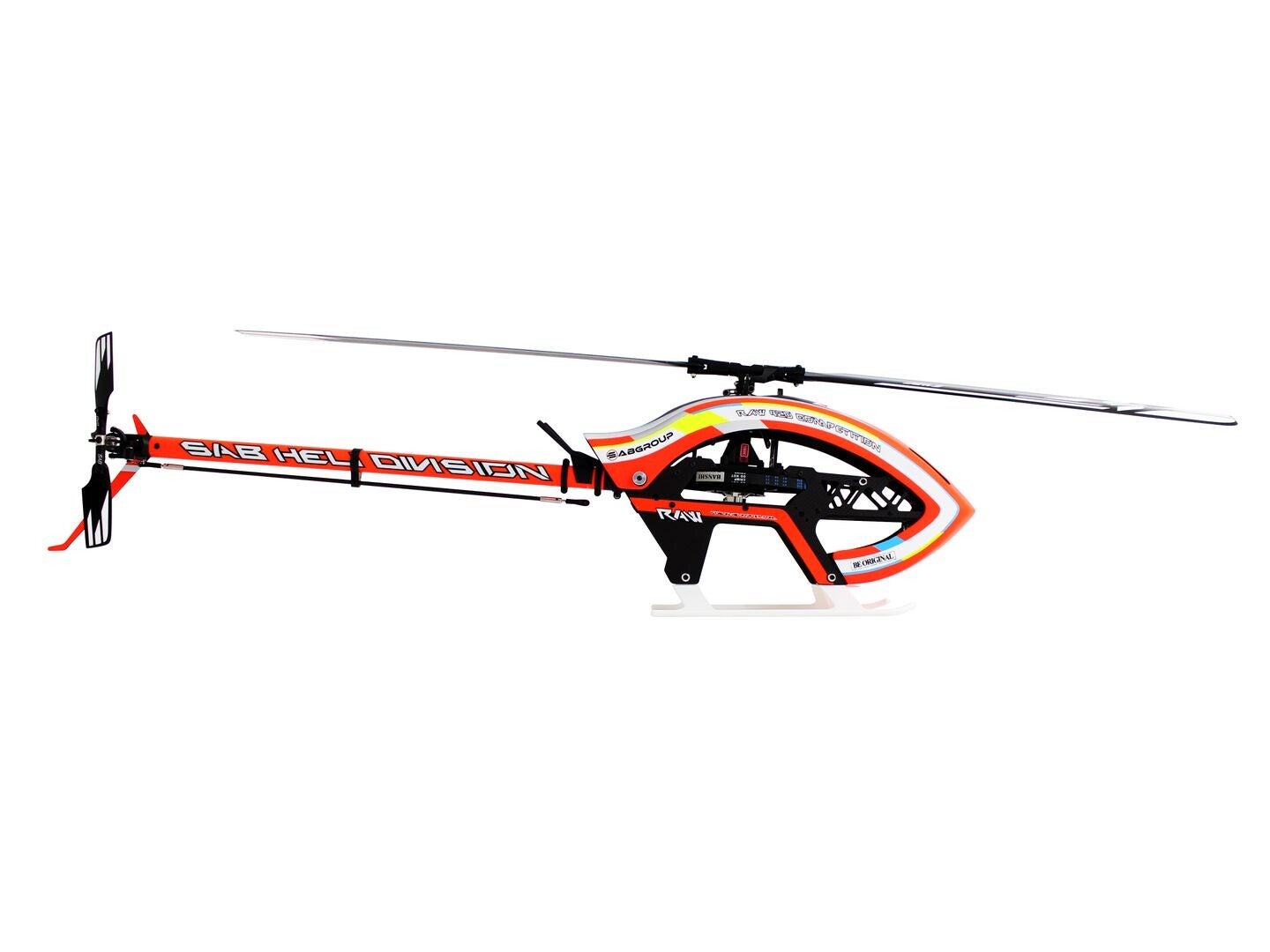

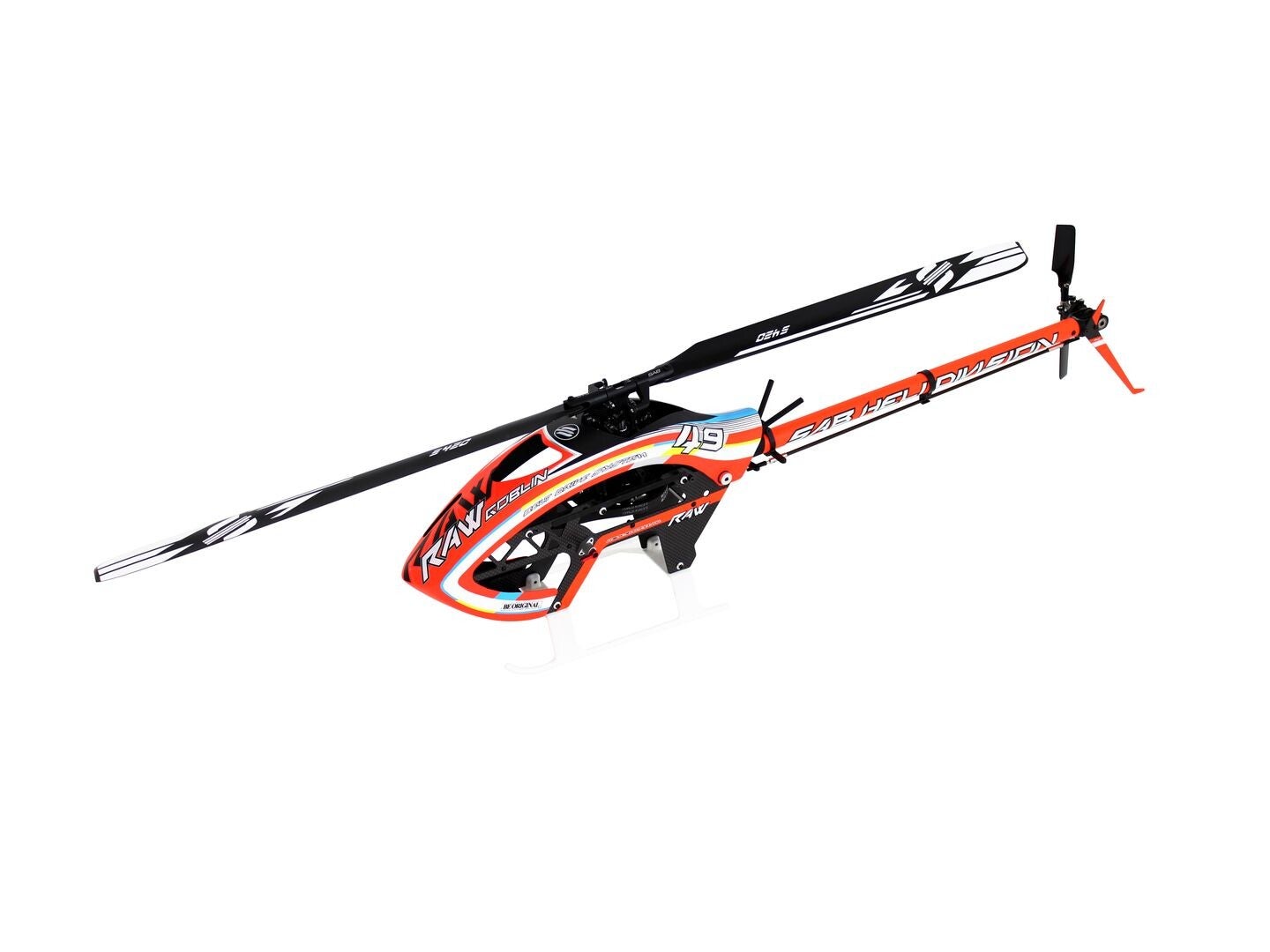

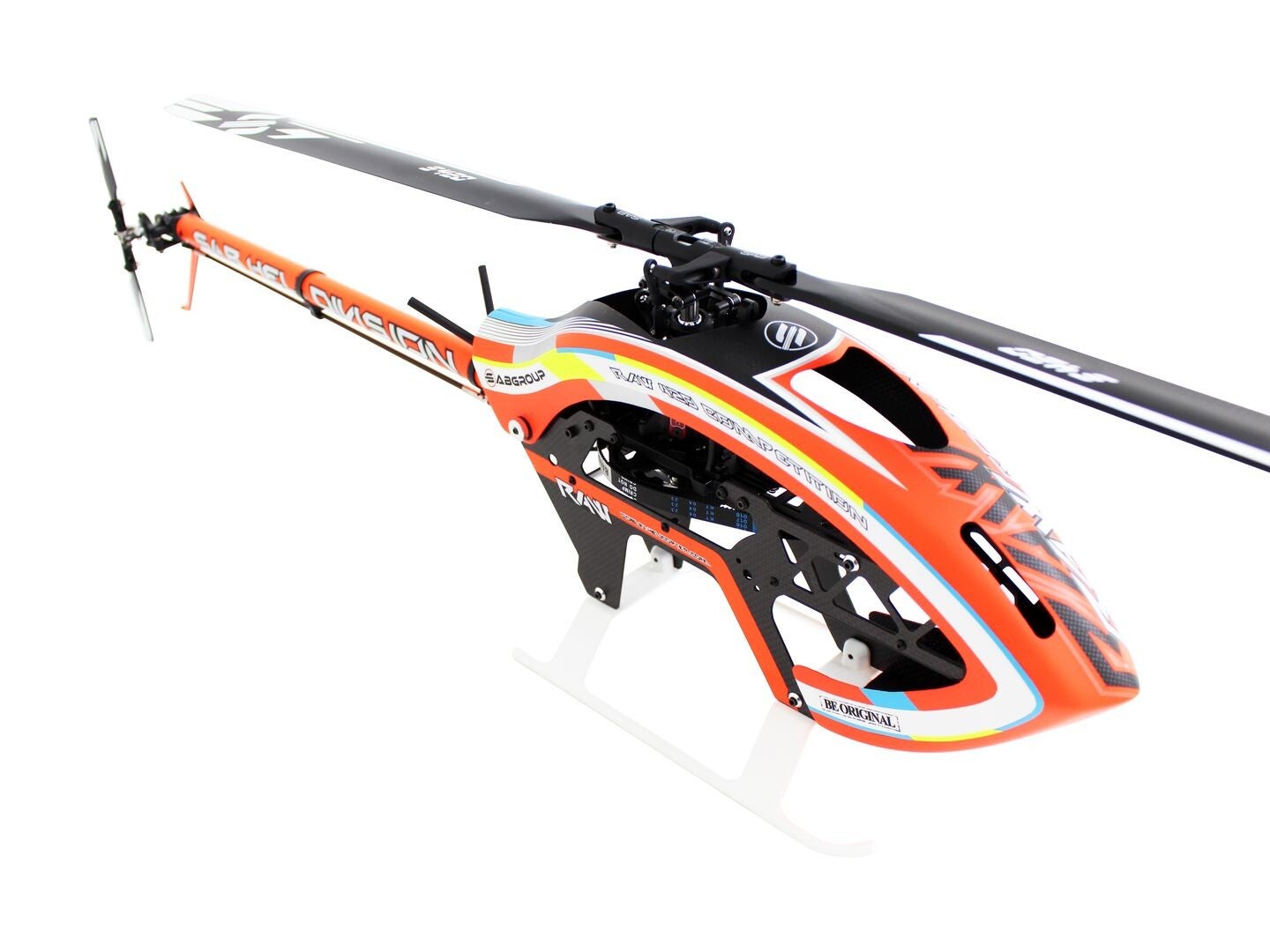

GOBLIN RAW 420 COMPETITION

SAB introduced the Direct Drive on this class of helicopter and as you may know, we sold more than 2500 KITS.

However, in pursuit of improving performance, we determined that the Direct Drive could no longer be the correct solution. The evolution of the RAW 420 will use a motor belt drive.

This is how the RAW 420 Competition was born. Lighter, faster, more flexible in the selection of the desired head speed at a higher performance level.

Specification:

•            Main rotor diameter 935mm (with 420mm blades)

•            Main blade length 380 to 420mm

•            Tail rotor diameter 190mm (with 70mm tail blades)

•            Tail blade length 60 to 70mm

•            Micro size cyclic servos (23mm)

•            Mini size tail servo (35mm)

•            Maximum battery size: 140x40x50mm (max)

•            Recommended battery: 6s 2200/2700 mAh

•            Recommended motor: 3020 – 3215 – 3220

•            Recommended KV motor: 900-1000 KV

•            Recommended battery weight: 350-420 grams

•            Recommended ESC: 60 (70-80A is required only for hard 3D flight with temperatures above 30°C)

•            Tail rotor ratio 4:1

•            8mm main shaft

•            5mm tail shaft

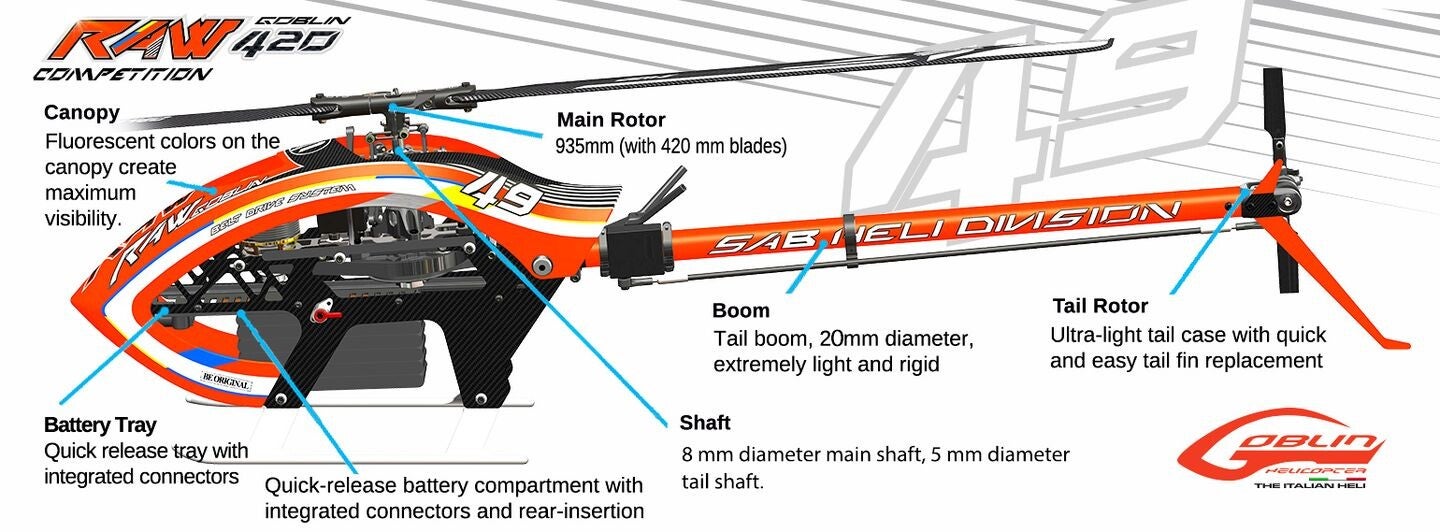

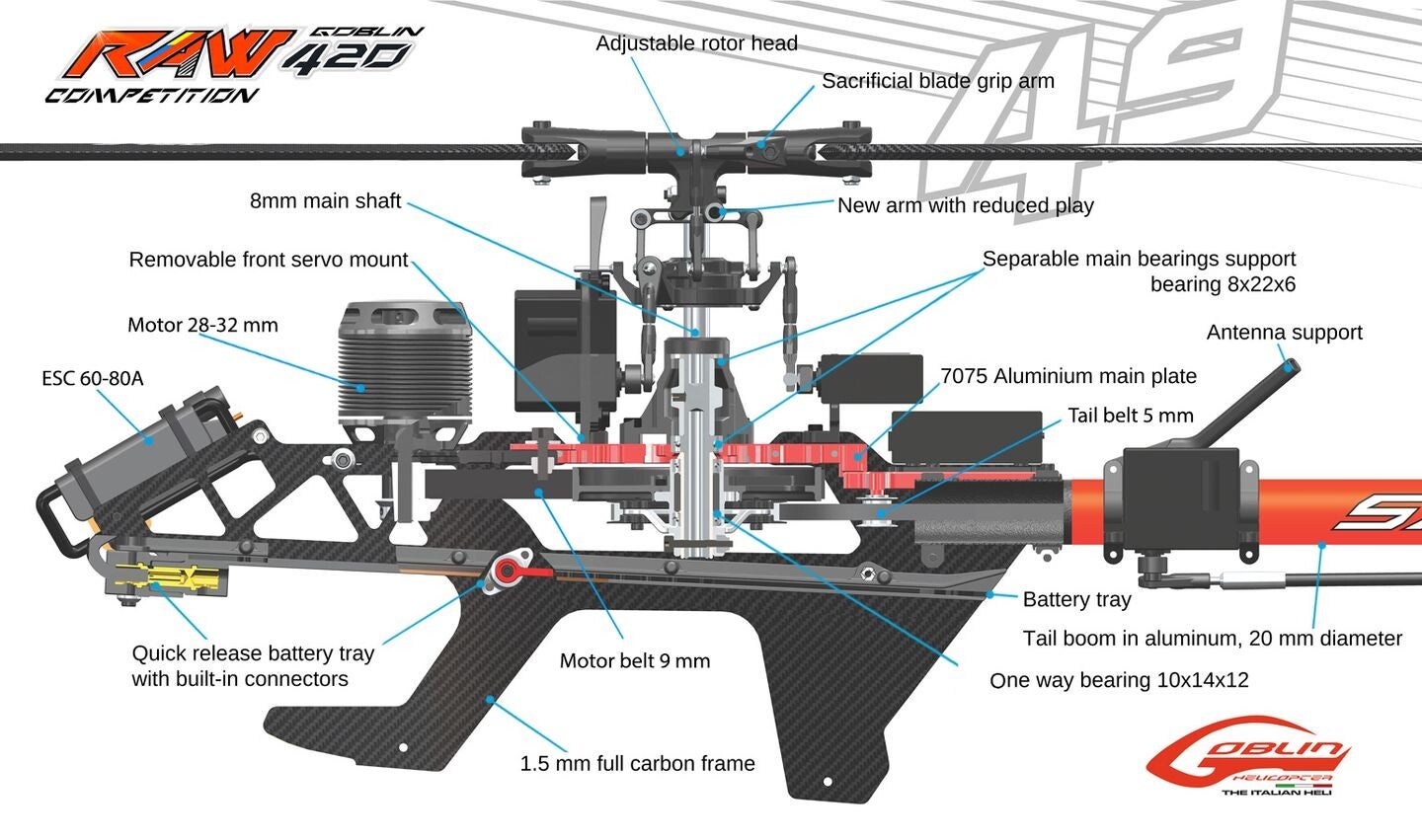

Raw 420 Competition main features:

•            Quick release battery tray with integrated connectors

•            Zytel HTN resin blade grip arms (sacrificial)

•            It is not necessary to remove the canopy to replace the batteries.

•            Main ratio 1:5/6

•            Tail ratio 4:1

Blade Size:  420 mm

Power supply:  6S 2200/2700 mAh

Weight (no battery/fuel):  1090g
