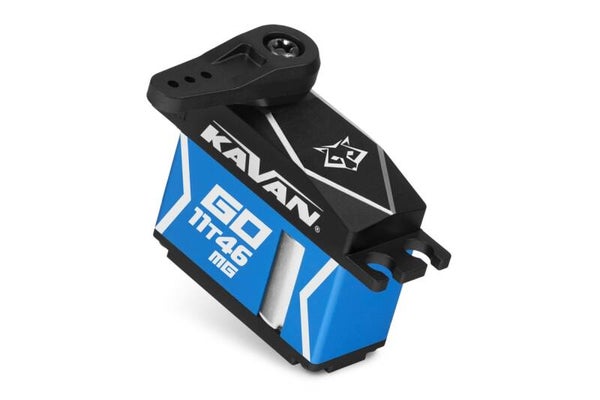

GO-11T46MG (0.065s/60°, 8.5kg.cm)

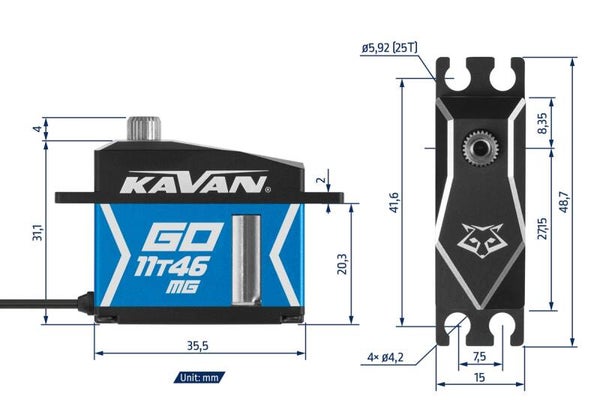

High torque/very high speed narrow band (760µs) digital mini brushless 41g servo with titanium gear and wide input voltage range 4.8-8.4V, 2xBB, to be used as tail servo for 380-500 RC helis with advanced gyro/flybarless control systems. Torque 5.0kg.cm, speed 0.090s/60° at 4.8V, torque 6.0kg.cm, speed 0.080s/60° at 6.0V, torque 7.5kg.cm, speed 0.072s/60° at 7.4V, torque 8.5kg.cm, speed 0.065s/60° at 8.4V. Aluminium case for perfect cooling under high load. Programmable. Dimensions 35.5x15x29.2mm, weight 41g.

Narrow band servo - 760 µs neutral, refreshing frequency up to 666 Hz - only to be used with compatible gyro/flybarless control systems as the tail (yaw) servo. It may not be connected to the regular receiver channel output (1520 µs neutral). Always be sure you have set the correct (narrow band) servo type on your gyro/control unit.

GO-11T46MG is programmable.

Wide input voltage range 4.8-7.4 V (nominal).

25T/5.92 mm output shaft.
